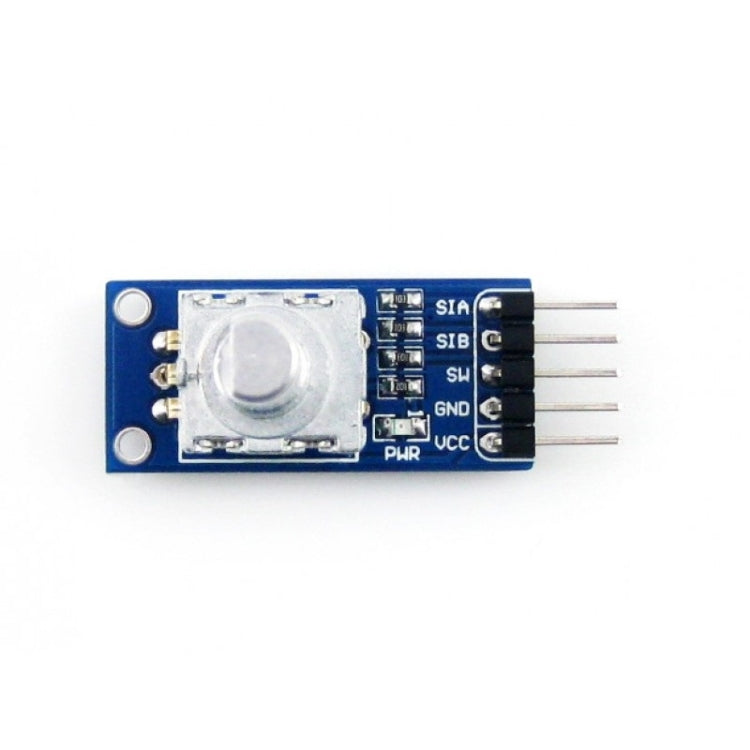

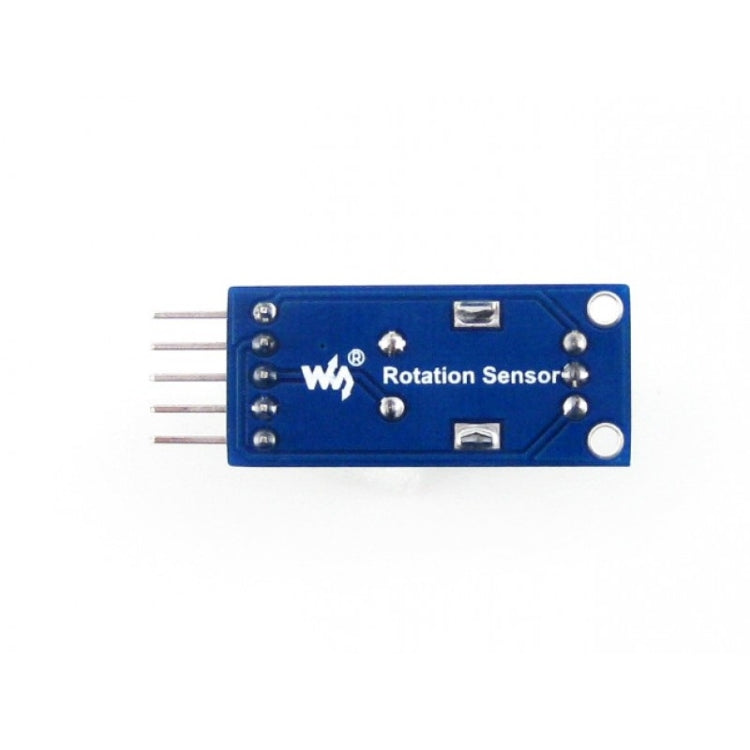

Waveshare Rotation Sensor

Waveshare

Waveshare Rotation Sensor, Rotation

Rs. 673.00

Shipping calculated at checkout.

Quantity
Option:

📦 Description

Overview
Detects clockwise/anti-clockwise rotations: degrees and laps

Specifications
1. Pulses per lap: 15
2. Power: 3.0V ~ 5.3V
3. Dimension: 32.1mm * 15.4mm
4. Mounting holes size: 2.0mm

Applications
Positioning in Industrial Controls

How to Use

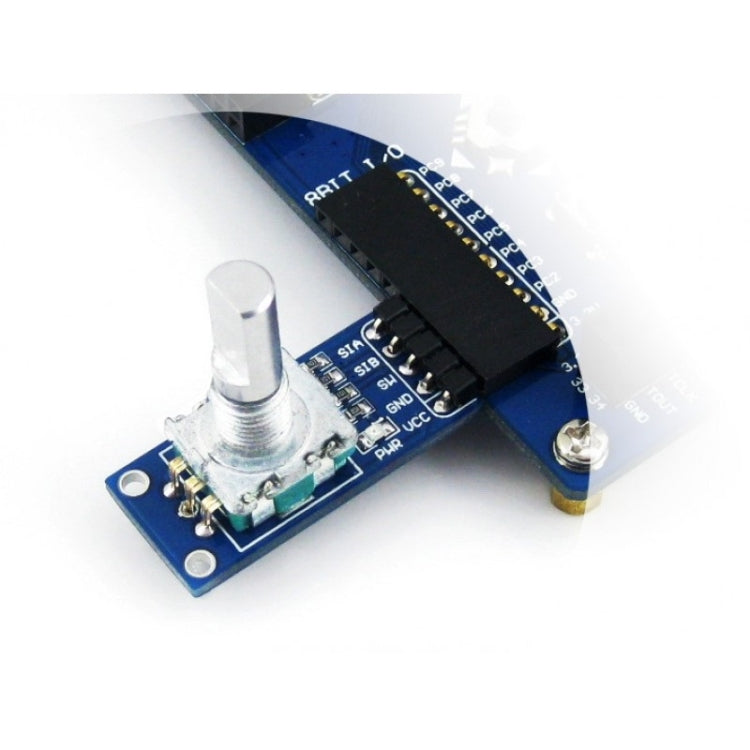

In the case of working with a MCU:
1. VCC -- 3.0V ~ 5.3V
2. GND -- Power supply ground
3. SW -- MCU.IO (encoder button status)
4. SIB -- MCU.IO (output status)
5. SIA -- MCU.IO (output status)
Specification:
Package Weight
One Package Weight 0.02kgs / 0.04lb
One Package Size 5cm * 2cm * 1cm / 1.97inch * 0.79inch * 0.39inch
Qty per Carton 9600
Carton Weight 15.00kgs / 33.07lb
Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
Loading Container 20GP: 277 cartons * 9600 pcs = 2659200 pcs
40HQ: 644 cartons * 9600 pcs = 6182400 pcs
