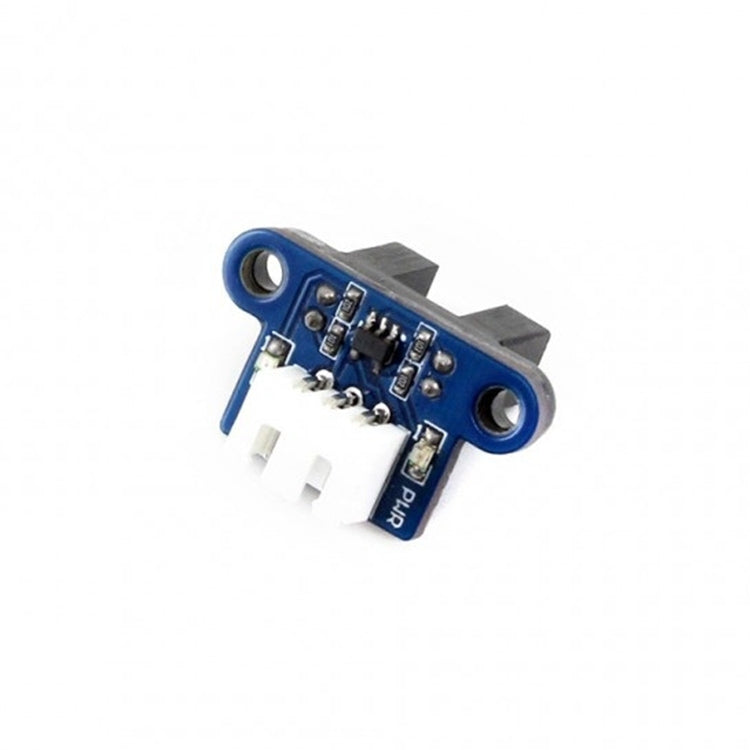

Waveshare Photo Interrupter Sensor

Bulky Mart

Waveshare Photo Interrupter Sensor, Speed Measuring

Rs. 632.00

Shipping calculated at checkout.

Quantity

📦 Description

Overview
1. Infrared detection, eliminating the interferences of external stray light
2. Schmitt trigger, stable wave form and signals

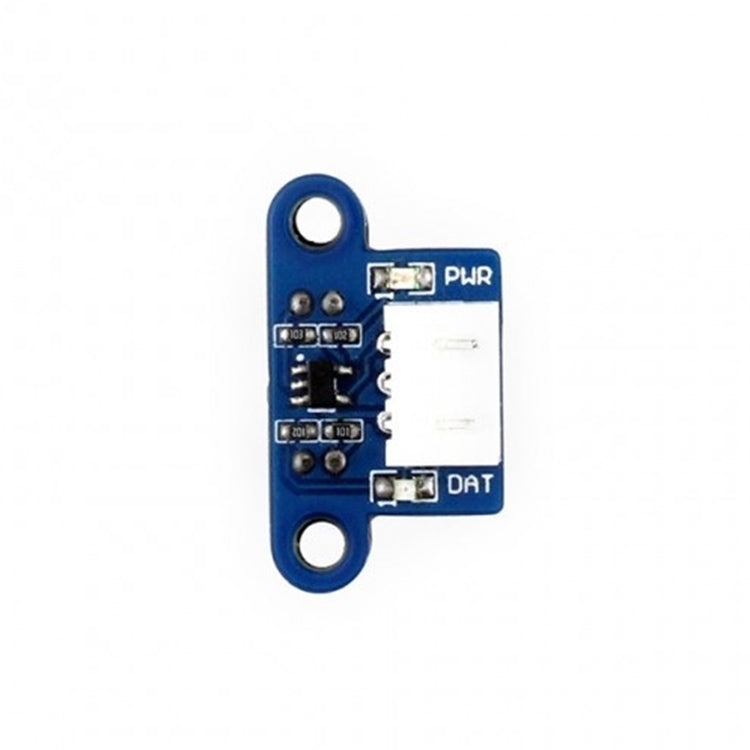

3. Signal output indicator (while breaking the beam, outputs low level, the indicator lights up)

Specifications
1. Power: 3.3V ~ 5V
2. Dimension: 26.8mm × 15mm × 18.7mm
3. Mounting holes size: 3mm
4. Gap width: 6mm

Applications

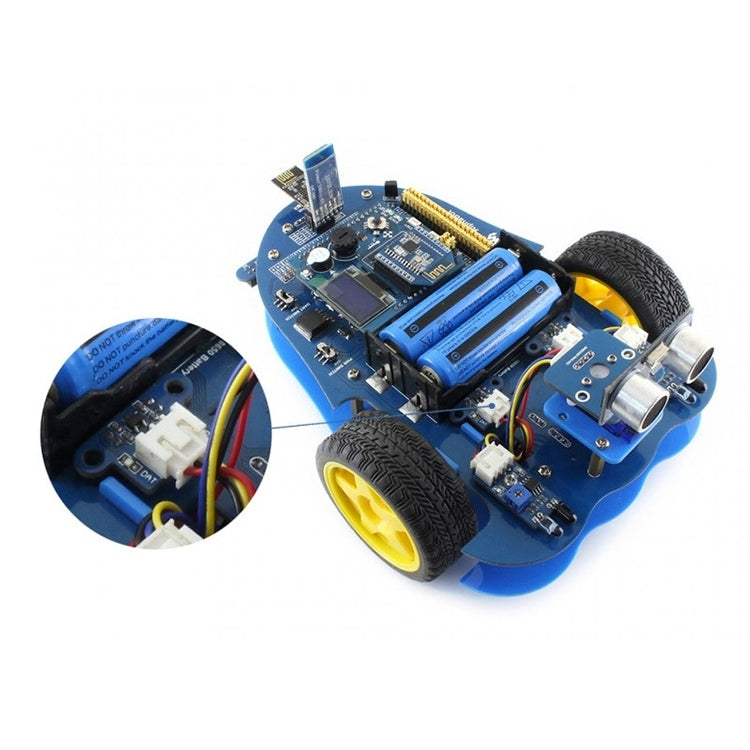

- Motor speed detection
- Pulse counter

How to Use
In the case of working with a MCU:
- VCC ↔ 3.3V ~ 5V
- GND ↔ GND
- DOUT ↔ MCU.IO (digital output)
Specification:
Package Weight
One Package Weight 0.01kgs / 0.03lb
One Package Size 6cm * 4cm * 4cm / 2.36inch * 1.57inch * 1.57inch
Qty per Carton 1000
Carton Weight 10.00kgs / 22.05lb
Carton Size 60cm * 40cm * 40cm / 23.62inch * 15.75inch * 15.75inch
Loading Container 20GP: 277 cartons * 1000 pcs = 277000 pcs
40HQ: 644 cartons * 1000 pcs = 644000 pcs
