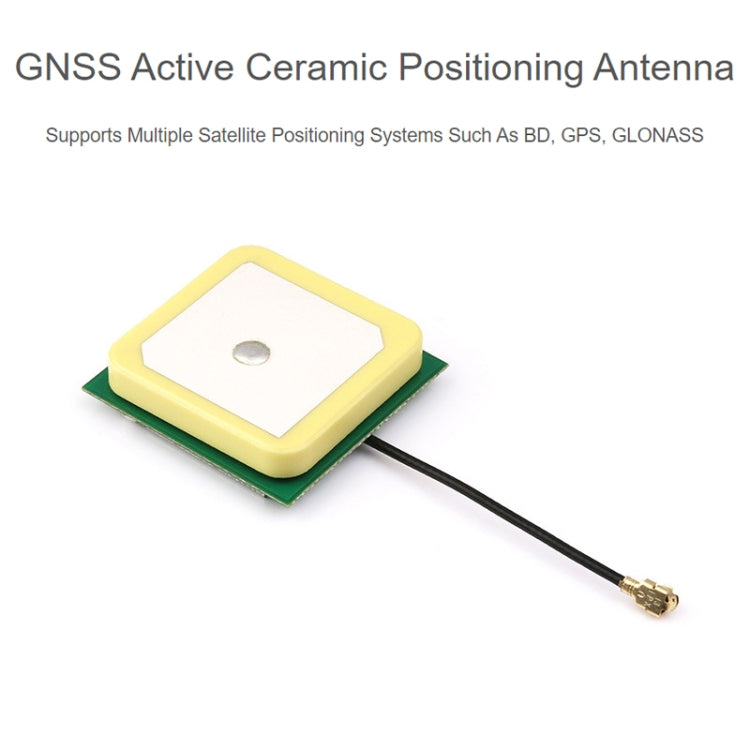

Waveshare 24095 GNSS Active Ceramic Positioning Antenna

Waveshare

Waveshare 24095 GNSS Active Ceramic Positioning Antenna, IPEX 1 Connector, 24095

Rs. 628.00

Shipping calculated at checkout.

Quantity
Option:

📦 Description


1. GNSS active ceramic positioning antenna supports BD, GPS, GLONASS and other satellite positioning systems
2. Center frequency: 1575.42MHz, 1561MHz, 1602.56MHz
3. Output impedance: 50 ohms
4. Noise: less than or equal to 1.5 decibels
5. Plug: IPEX 1

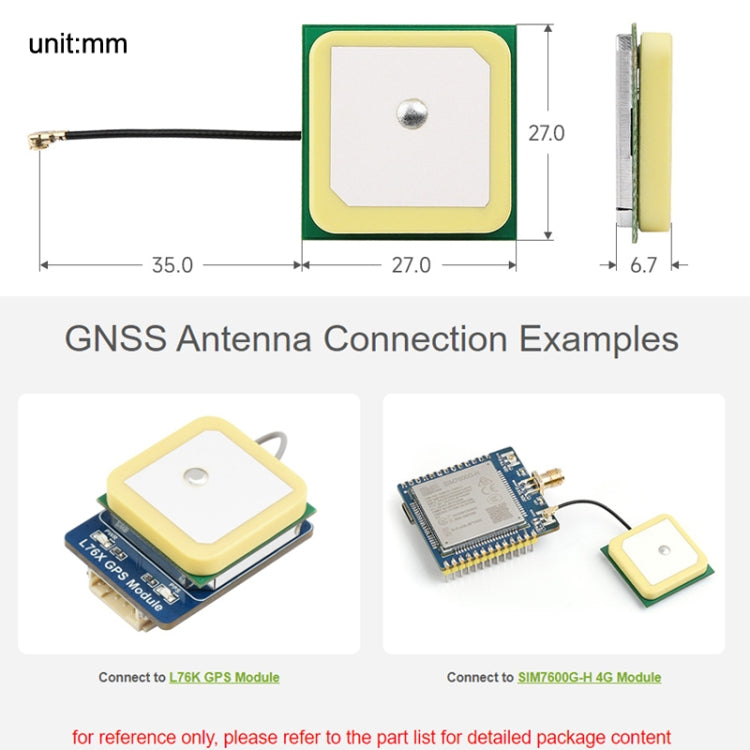

6. Cable length: 35mm
7. Ceramic size: 25 x 25mm
8. Current consumption: less than 10mA
9. Power supply: DC 3.3-5v
10. Operating temperature: -20 to 65 degrees Celsius
11. Input power: 50w
12. Axial ratio: 3dB
13. Radiation direction: omnidirectional


Specification:
Package Weight
One Package Weight 0.05kgs / 0.12lb
One Package Size 6cm * 4cm * 3cm / 2.36inch * 1.57inch * 1.18inch
Qty per Carton 500
Carton Weight 27.00kgs / 59.52lb
Carton Size 47cm * 31cm * 23cm / 18.5inch * 12.2inch * 9.06inch
Loading Container 20GP: 795 cartons * 500 pcs = 397500 pcs
40HQ: 1847 cartons * 500 pcs = 923500 pcs
