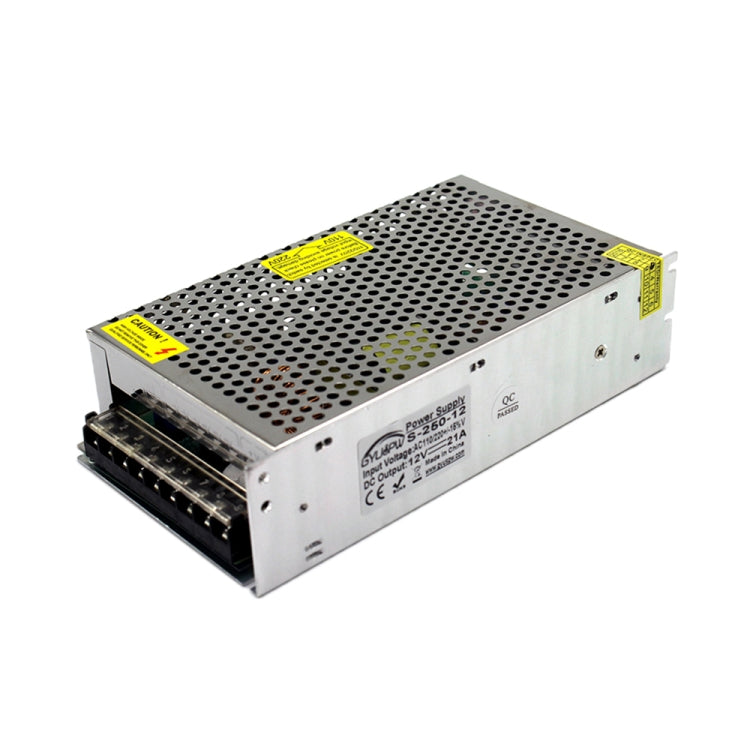

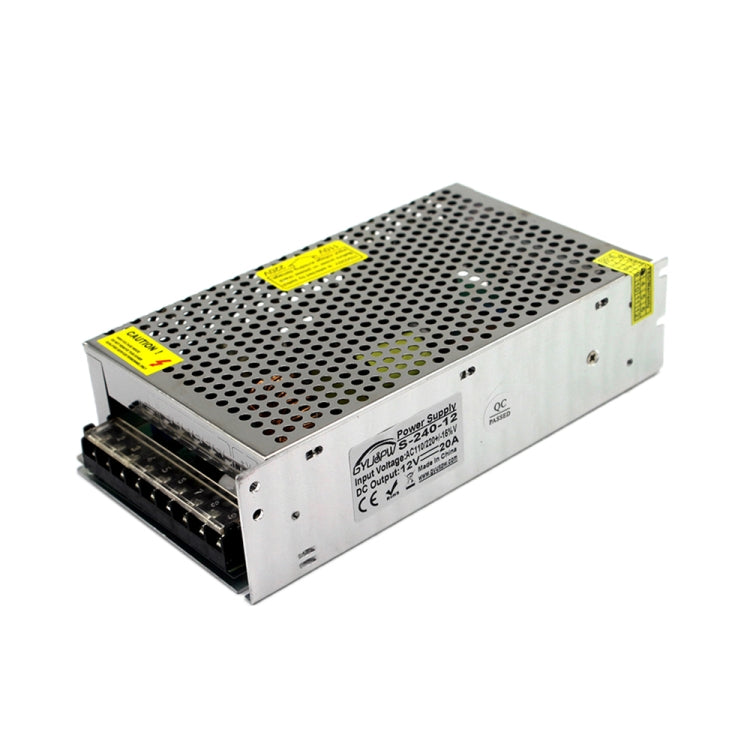

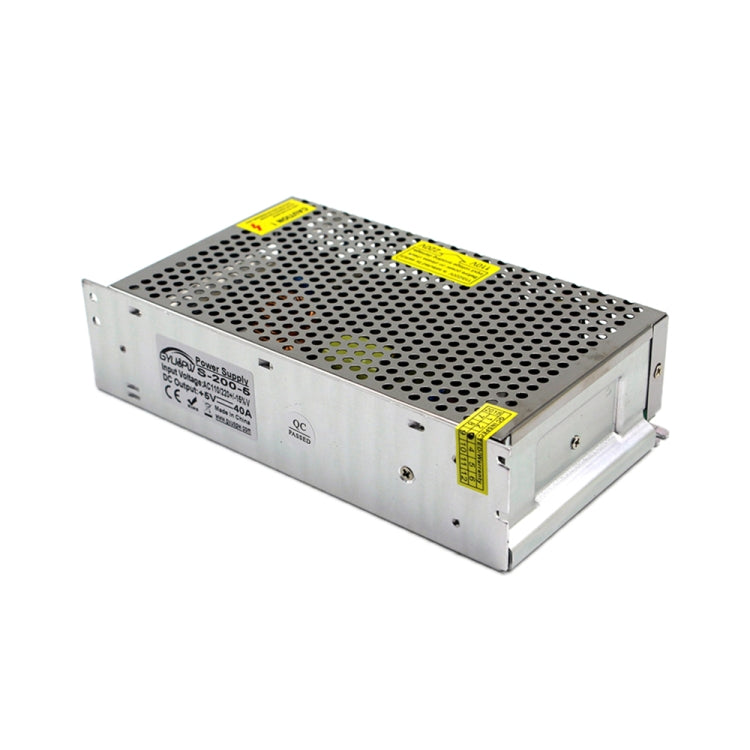

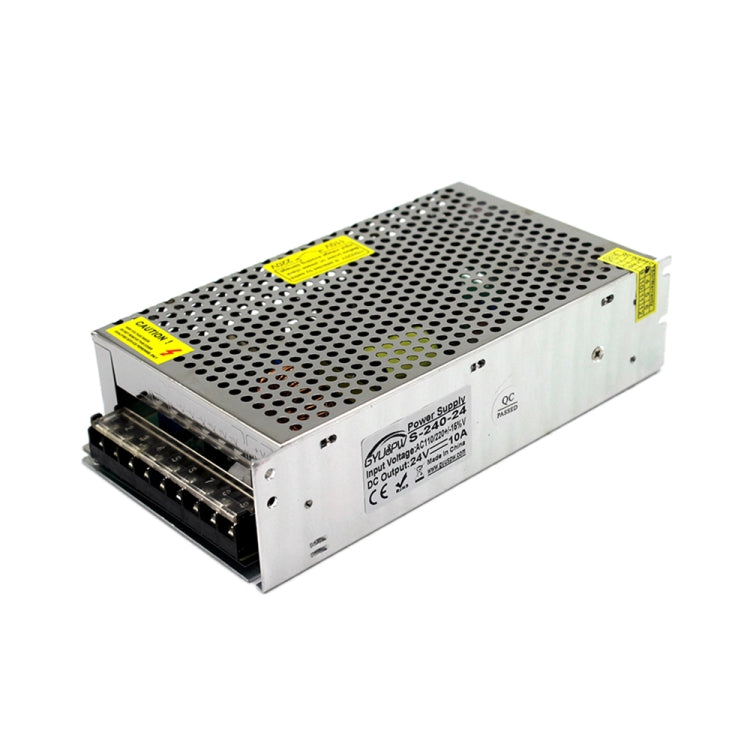

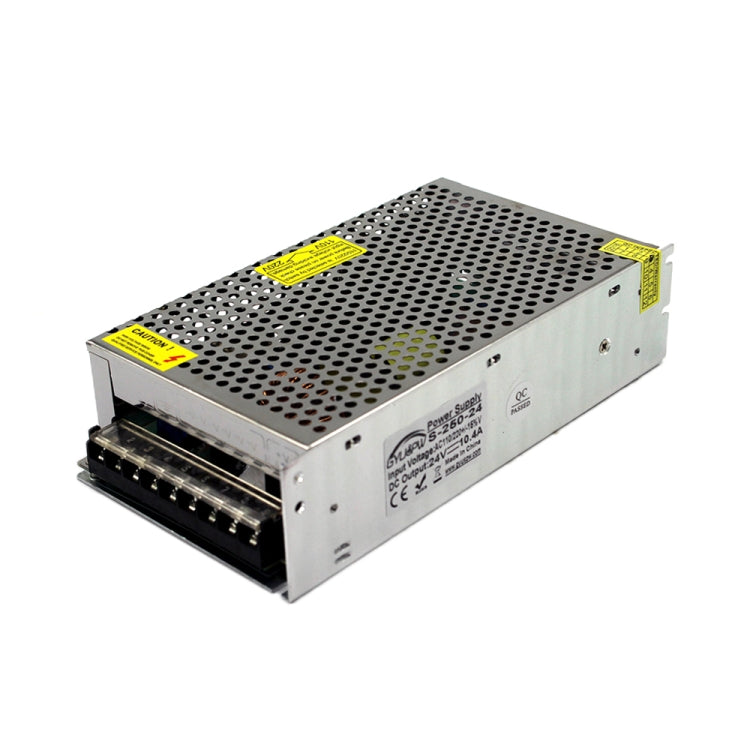

LED Regulated Switching Power Supply, Size: 200 x 110 x 49mm, S-200-5 DC5V 40A 200W, S-240-12 DC12V 20A 240W, S-250-12 DC12V 21A 250W, S-240-24 DC24V 10A 240W, S-250-24 DC24V 10.4A 250W

Rs. 2,492.00

Shipping calculated at checkout.

Quantity
Option:

📦 Description

1. All products have passed the full power aging test to provide safety and stability.
2. The aluminum casing is used to enhance heat dissipation and provide the service life of the product.
3. Input voltage: 110V/220V +/- 1% (100-140V, 180-260V)
4. Output voltage: DC12V 0-20A
5. Difference range: +/- 1%
6. Power: 240W
9. Output adjustable voltage range: +/- 5%
10. Frequency: 50-60Hz
11. Leakage current: less than 1mA / 230V
12. Temperature coefficient: +/- 0.03%/degree Celsius
13. Start, rise, hold time: 200ms, 50ms, 20ms
14. Vibration resistance: 10-500Hz, 2G 10min/1 cycle, duration 60 minutes, each axis
15. Protection: overload, overvoltage, overcurrent, short circuit
16. Pressure resistance Input and output: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC
17. Working temperature and humidity: -10~60 degrees Celsius, 20-90%RH
18. Storage temperature and humidity: -20~85 degrees Celsius, 10-95%RH

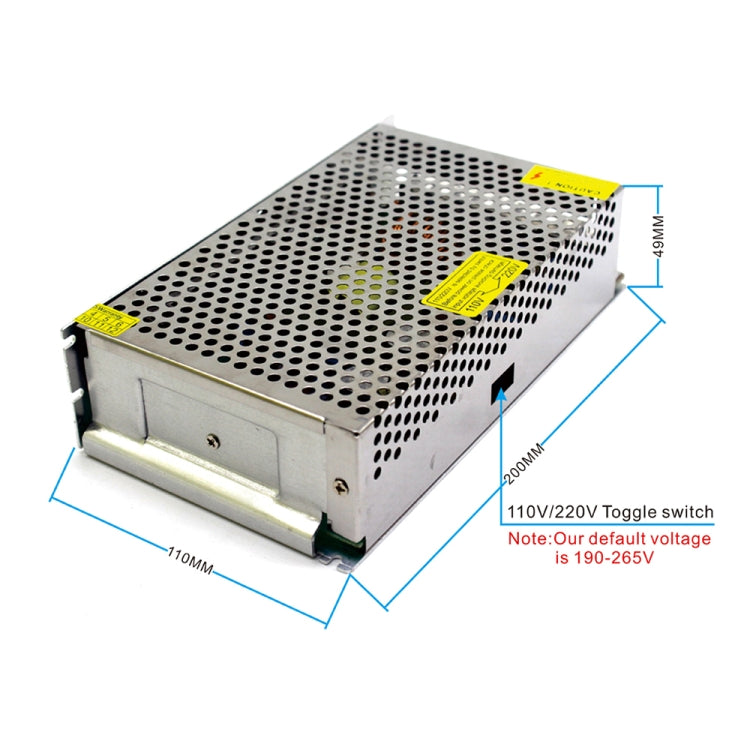

19. Dimensions: 200 x 110 x 49mm


Specification:
General
Certificate ROHS, FCC, EMC, LVD
Package Weight
One Package Weight 0.47kgs / 1.03lb
One Package Size 26cm * 14cm * 6cm / 10.24inch * 5.51inch * 2.36inch
Qty per Carton 20
Carton Weight 10.80kgs / 23.81lb
Carton Size 42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch
Loading Container 20GP: 522 cartons * 20 pcs = 10440 pcs
40HQ: 1212 cartons * 20 pcs = 24240 pcs
