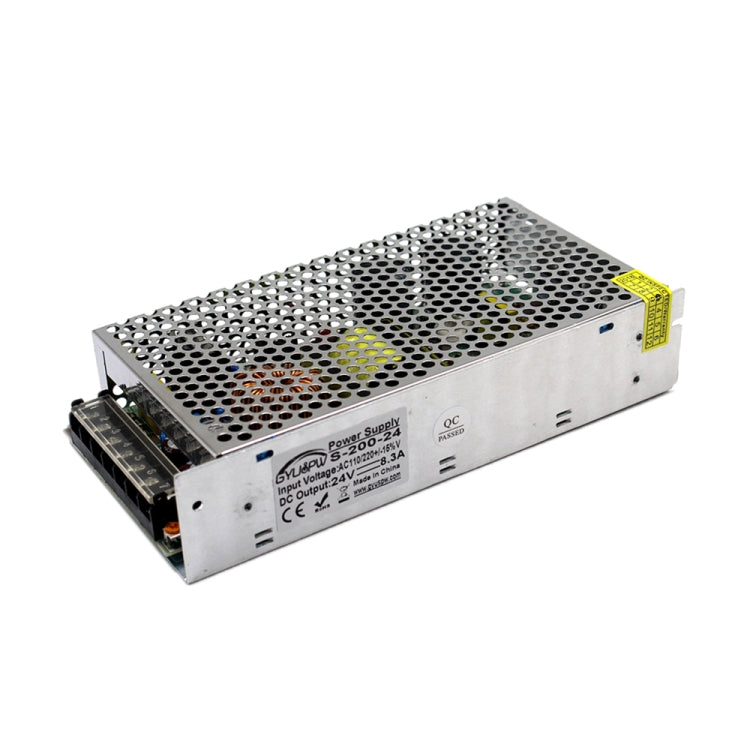

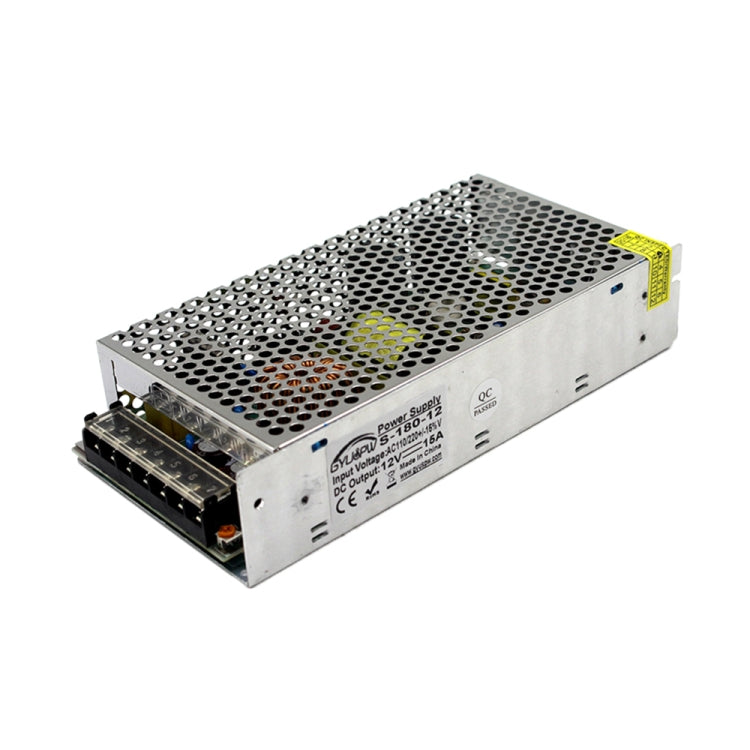

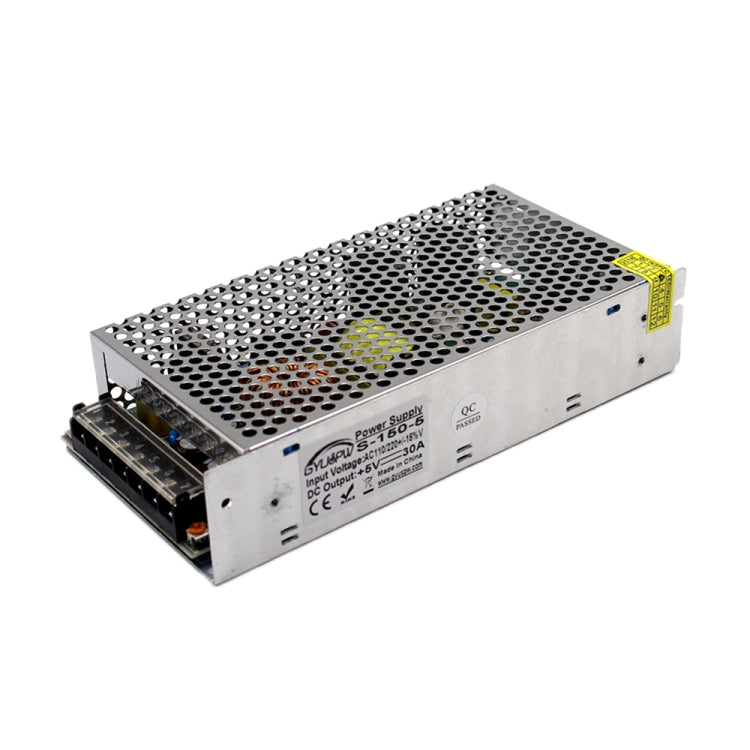

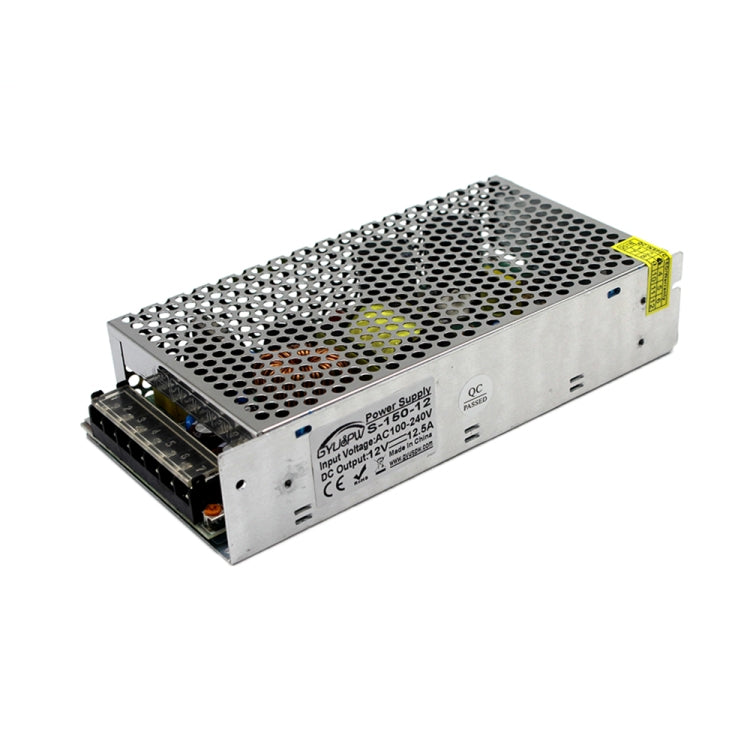

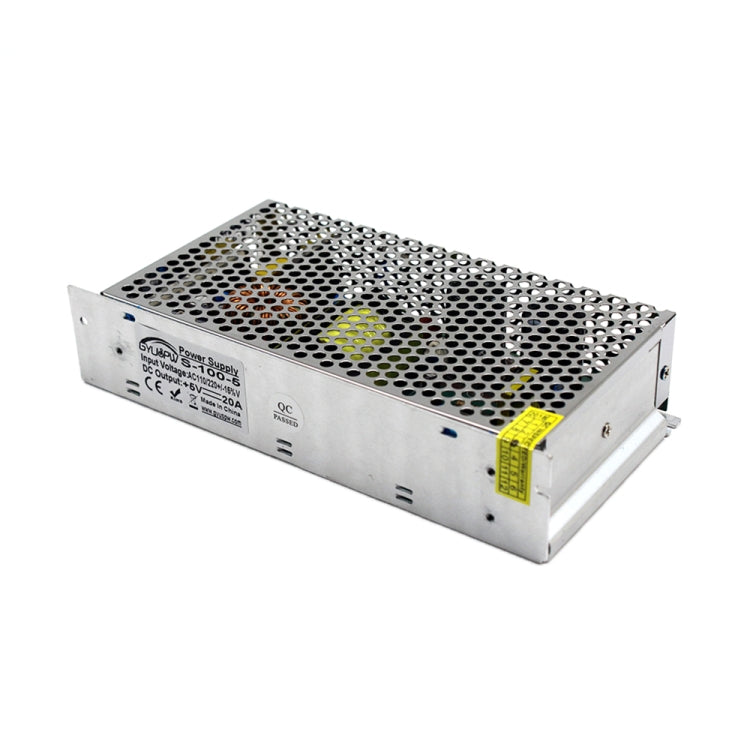

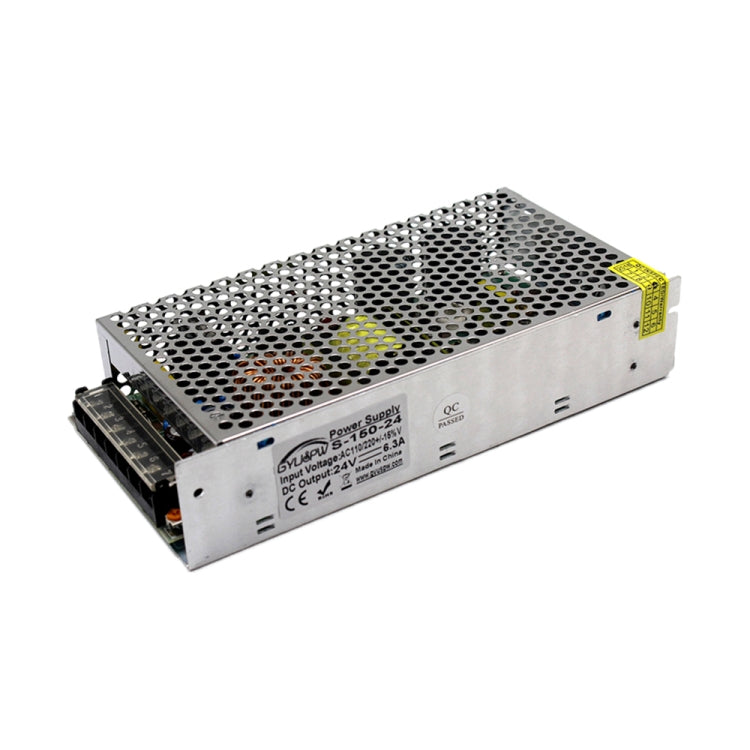

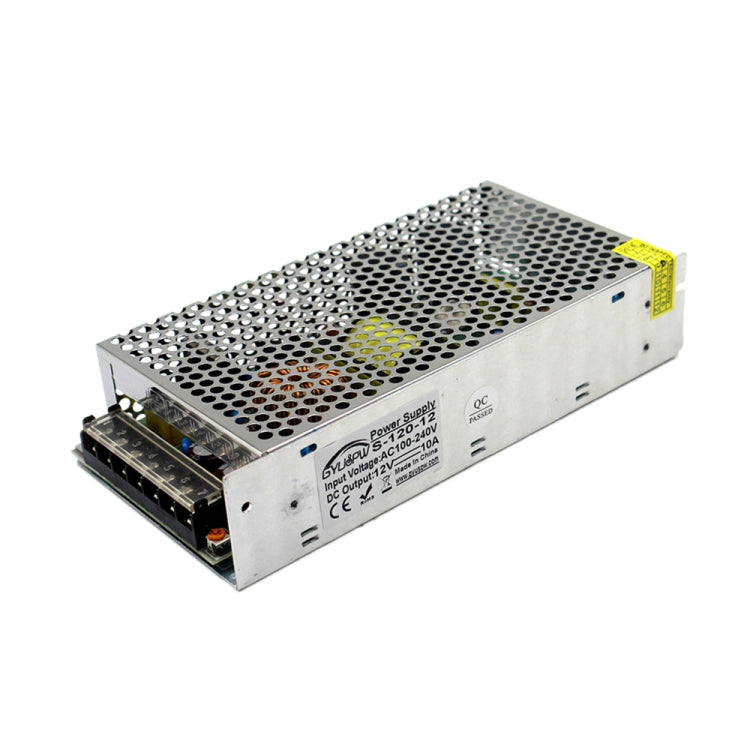

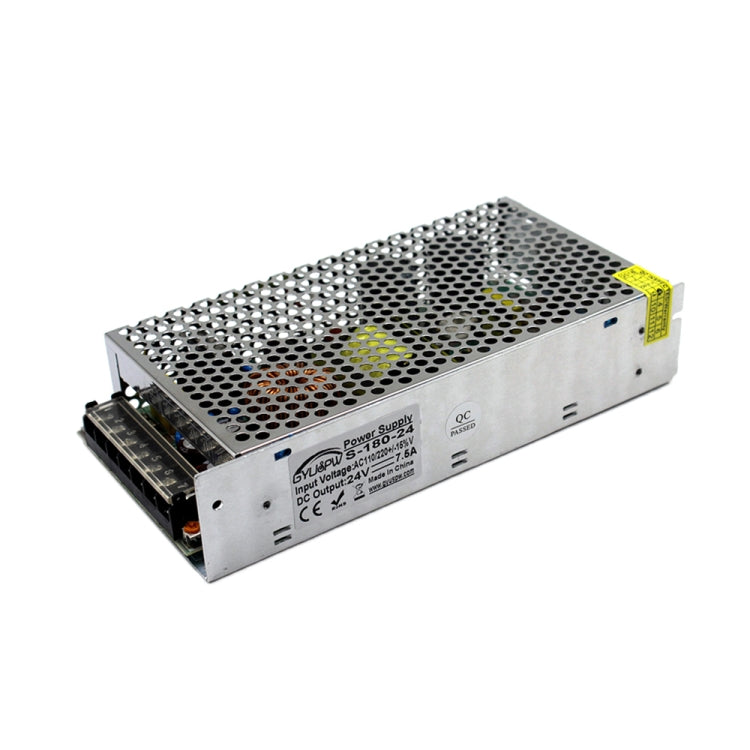

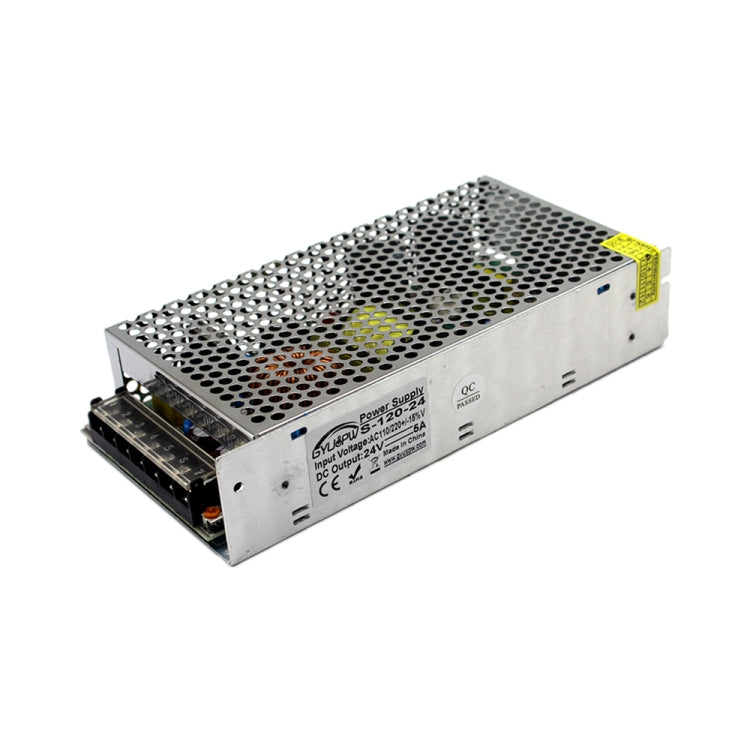

LED Regulated Switching Power Supply, Size: 199 x 98 x 42mm, S-100-5 DC5V 20A 100W, S-150-5 DC5V 30A 150W, S-120-12 DC12V 10A 120W, S-150-12 DC12V 12.5A 150W, S-180-12 DC12V 15A 180W, S-200-12 DC12V 16.7A 200W, S-120-24 DC24V 5A 120W...

Rs. 1,755.00

Shipping calculated at checkout.

Quantity
Option:

📦 Description

1. All products have passed the full power aging test to provide safety and stability.
2. The aluminum casing is used to enhance heat dissipation and provide the service life of the product.
3. Input voltage: 110V/220V +/- 1% (100-140V, 180-260V)
4. Output voltage: DC12V 0-16.7A
5. Difference range: +/- 1%
6. Power: 200W
9. Output adjustable voltage range: +/- 5%
10. Frequency: 50-60Hz
11. Leakage current: less than 1mA / 230V
12. Temperature coefficient: +/- 0.03%/degree Celsius
13. Start, rise, hold time: 200ms, 50ms, 20ms
14. Vibration resistance: 10-500Hz, 2G 10min / 1 cycle, duration 60 minutes, each axis
15. Protection: overload, overvoltage, overcurrent, short circuit
16. Pressure resistance Input and output: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC
17. Working temperature and humidity: -10~60 degrees Celsius, 20-90%RH
18. Storage temperature and humidity: -20~85 degrees Celsius, 10-95%RH

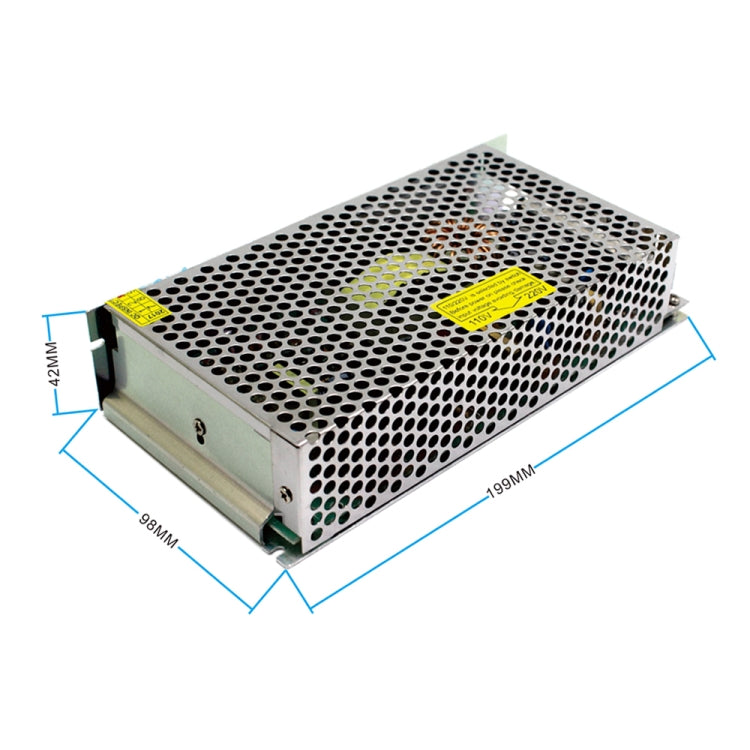

19. Size: 199 x 98 x 42mm


Specification:
General
Certificate CE, ROHS, FCC, EMC
Package Weight
One Package Weight 0.53kgs / 1.17lb
One Package Size 24cm * 12cm * 6cm / 9.45inch * 4.72inch * 2.36inch
Qty per Carton 30
Carton Weight 16.05kgs / 35.38lb
Carton Size 42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch
Loading Container 20GP: 522 cartons * 30 pcs = 15660 pcs
40HQ: 1212 cartons * 30 pcs = 36360 pcs
