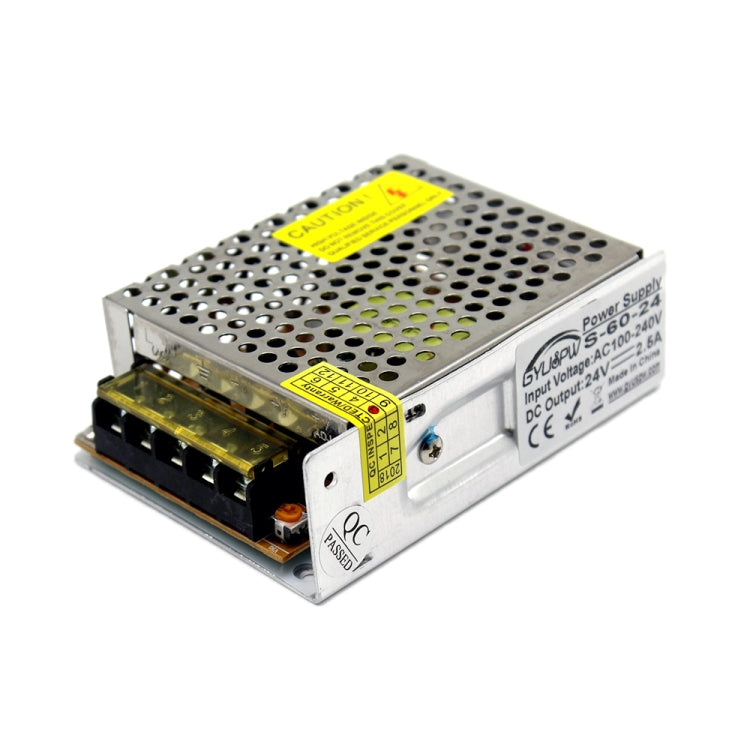

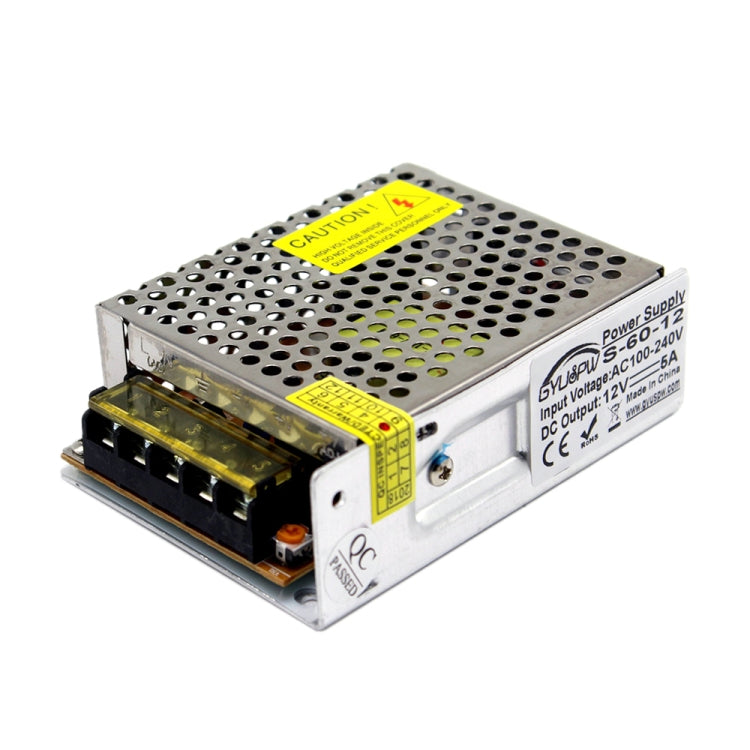

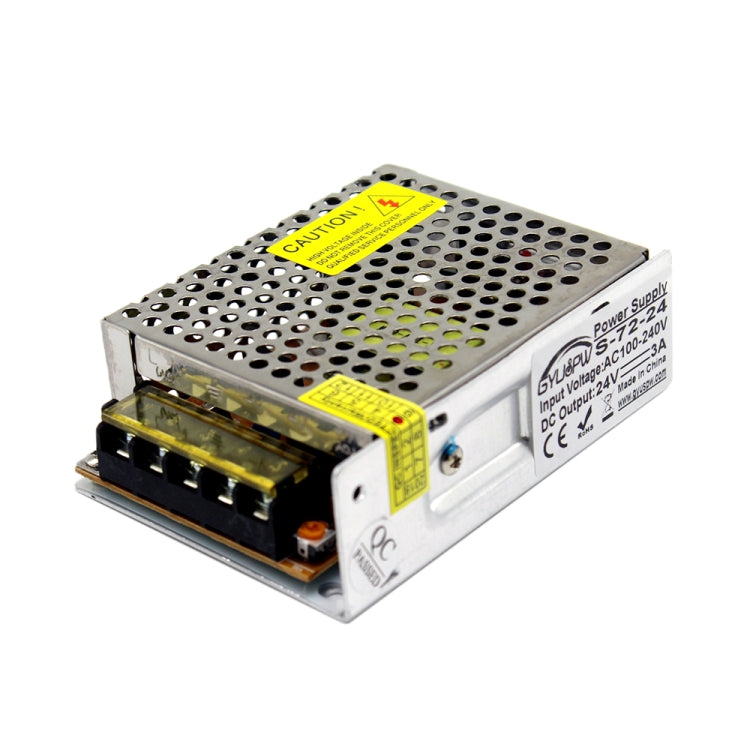

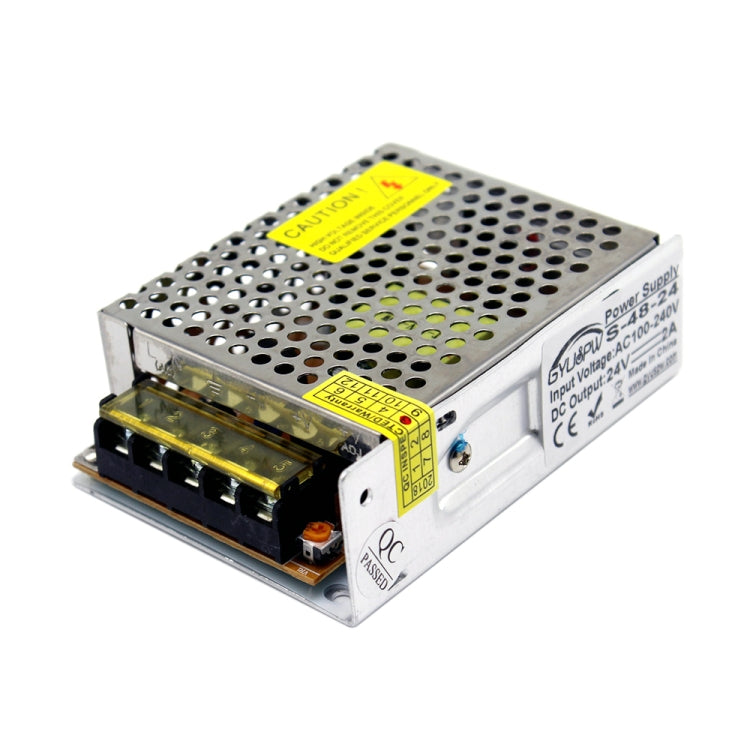

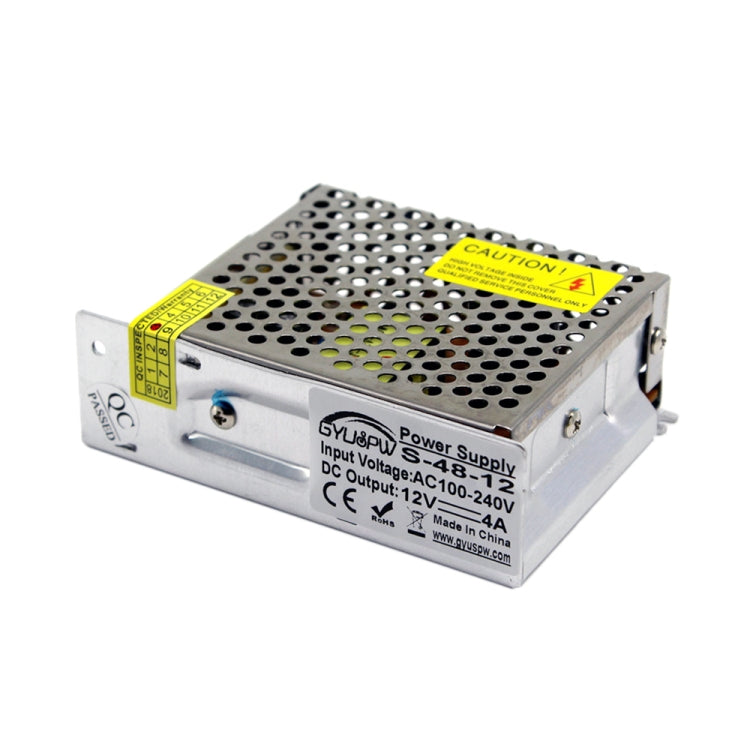

LED Regulated Switching Power Supply, Size: 110 x 79 x 36mm, S-48-12 DC12V 4A 48W, S-60-12 DC12V 5A 60W, S-48-24 DC24V 2A 48W, S-60-24 DC24V 2.5A 60W, S-72-24 DC24V 3A 72W

Rs. 1,189.00

Shipping calculated at checkout.

Quantity
Option:

📦 Description

1. All products have passed the full power aging test to provide safety and stability.

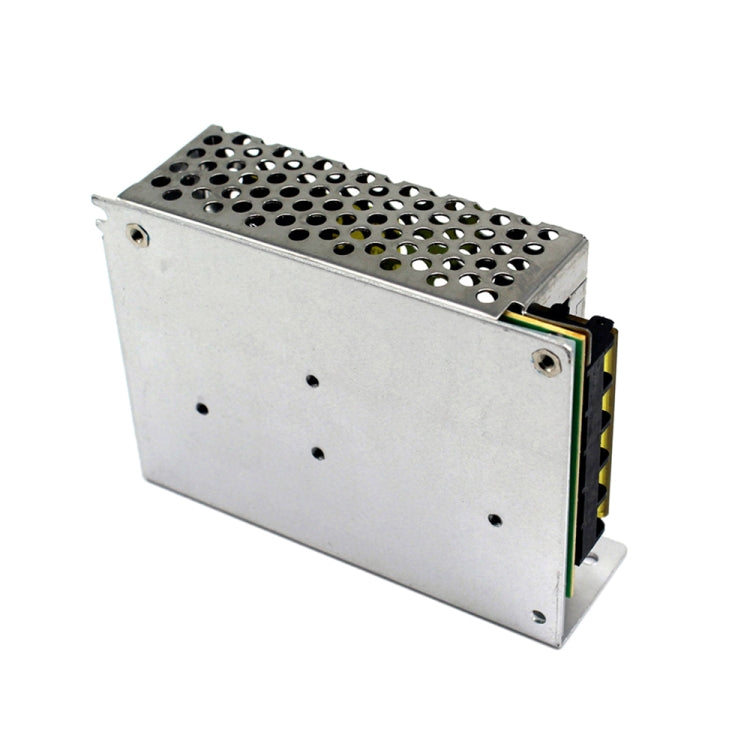

2. The aluminum casing is used to enhance heat dissipation and provide the service life of the product.

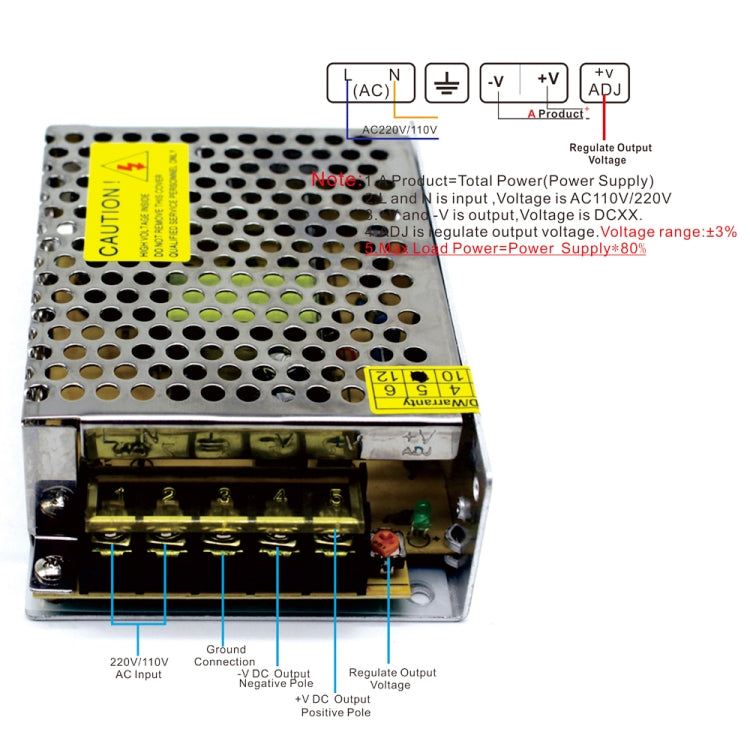

3. Input voltage: 110V/220V +/- 1% (100-140V, 180-260V)
4. Output voltage: DC12V 0-5A
5. Difference range: +/- 1%
6. Power: 60W
9. Output adjustable voltage range: +/- 5%
10. Frequency: 50-60Hz
11. Leakage current: less than 1mA / 230V
12. Temperature coefficient: +/- 0.03%/degree Celsius
13. Start, rise, hold time: 200ms, 50ms, 20ms
14. Vibration resistance: 10-500Hz, 2G 10min / 1 cycle, duration 60 minutes, each axis
15. Protection: overload, overvoltage, overcurrent, short circuit
16. Pressure resistance Input and output: 1.5KvAC input and shell, 1.5KvAC output and shell, 0.5KvAC
17. Working temperature and humidity: -10~60 degrees Celsius, 20-90%RH
18. Storage temperature and humidity: -20~85 degrees Celsius, 10-95%RH
19. Size: 110 x 79 x 36mm



Specification:
General
Certificate CE, ROHS, FCC, EMC
Package Weight
One Package Weight 0.23kgs / 0.51lb
One Package Size 12cm * 8.5cm * 4.5cm / 4.72inch * 3.35inch * 1.77inch
Qty per Carton 70
Carton Weight 19.35kgs / 42.66lb
Carton Size 42cm * 38cm * 32cm / 16.54inch * 14.96inch * 12.6inch
Loading Container 20GP: 522 cartons * 70 pcs = 36540 pcs
40HQ: 1212 cartons * 70 pcs = 84840 pcs
