1. Input voltage: AC220V 50/60Hz
2. Ozone density:200mg/H
3. Work Current:350-420mA
4. Power:<8W

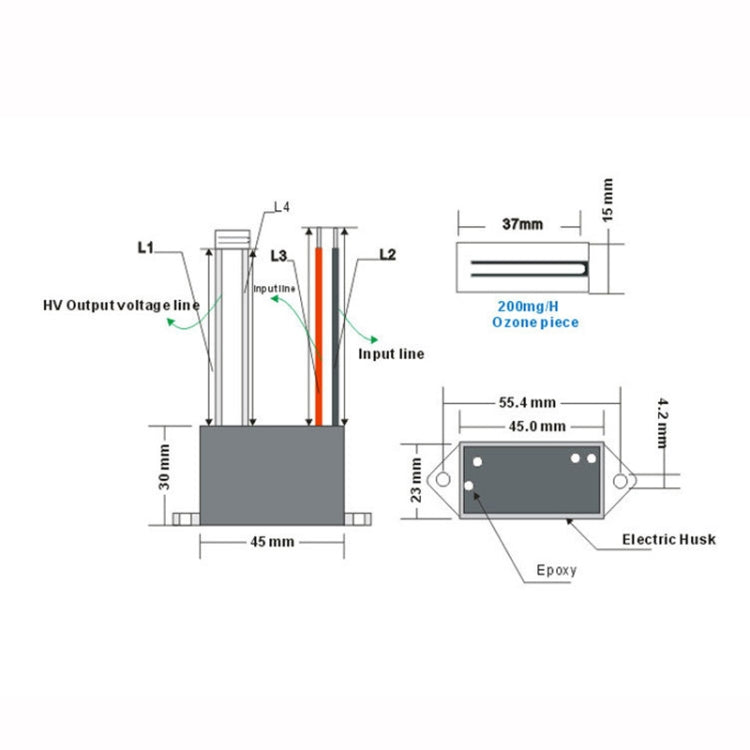

5. Size: 64x20x30 mm
Note:
1. Ozone can not work continuously, the longest working hours should not exceed 20 minutes.
2. Ozone work every 5-10 minutes, we need to stop to rest for 2-3 minutes, so that the product better heat dissipation.
3.DC ozone generator connect red input line +12, black input line -12v.
4.Ozone ceramic pieces are very easy to break, the use of please press the error, bats, electric soldering iron soldering pressure and temperature (350 ~ 400 degrees), so as to avoid ceramic pieces break.
