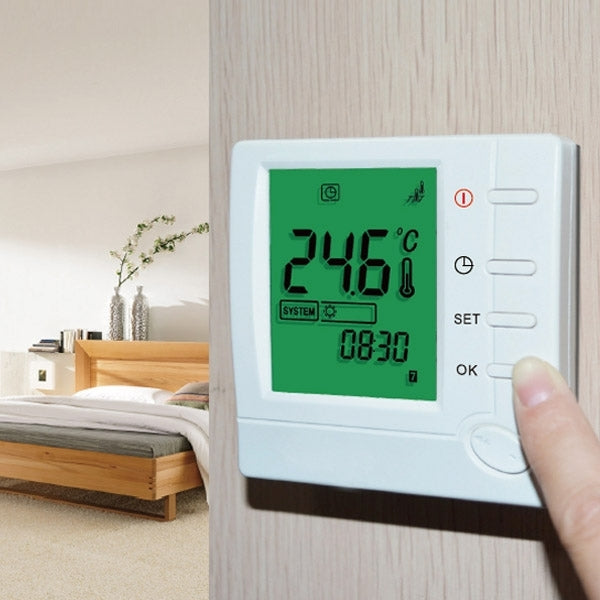

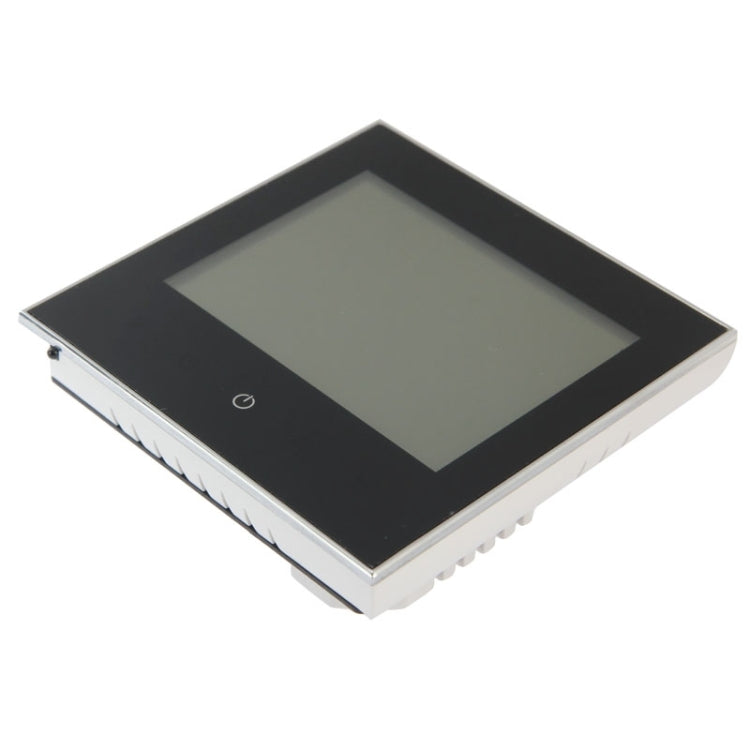

About the product1. The product is a programmable thermostat, used as controlling floor electric heating or water heating system electric actuators opening or closing
2. The thermostat is used in commercial, industrial, hospital, hotels, civil buildings and villas for heating control
3. Designed to on / off control the fans and valves in air conditioner applications via comparison of the room temperature and setting temperature to achieve the aim of comfort and saving energy
Features1. Acrylic lens to avoid the finger scratch
2. Touch Button makes simple operation
3. Large screen display with backlight, easy to read, even in the dark
4. 5+2 or 6+1 or 7 days six periods program schedules maximize comfort and economy
5. One-touch temperature control overrides program schedule at any time
6. Precise comfort control keeps temperature within 1 Celsius Degree of the level you set
7. Data memory when power is off
8. Easy installation
Specification:
General |
Accuracy |
+-1 Celsius Degree |
Power Supply |
95-240V / 50-60Hz |
Current Load |
3A (Water Heating), 16A (Electric Heating) |
Setting Temperature Range |
5-60 Celsius Degree |
Room Temperature Range |
5-35 Celsius Degree |
Size |
86mm x 86mm x 13.3mm |
|
Package Include |
Package Contents |
1 x Manual 1 x Thermostat 2 x Screws |
|
Package Weight |
One Package Weight |
0.30kgs / 0.65lb |
One Package Size |
11.2cm * 9cm * 6cm / 4.41inch * 3.54inch * 2.36inch |
Carton Weight |
14.30kgs / 31.53lb |
Carton Size |
60cm * 30cm * 25cm / 23.62inch * 11.81inch * 9.84inch |
Loading Container |
20GP: 592 cartons * 60 pcs = 35520 pcs 40HQ: 1375 cartons * 60 pcs = 82500 pcs
|
|
