DL-POW1 DC16V DIN Rail DALI Bus Power Supply 4W Max 250mA LED Transformer for RGB CCT LED Downlight

Rs. 3,244.00

Shipping calculated at checkout.

Quantity

📦 Description

Product parameters:

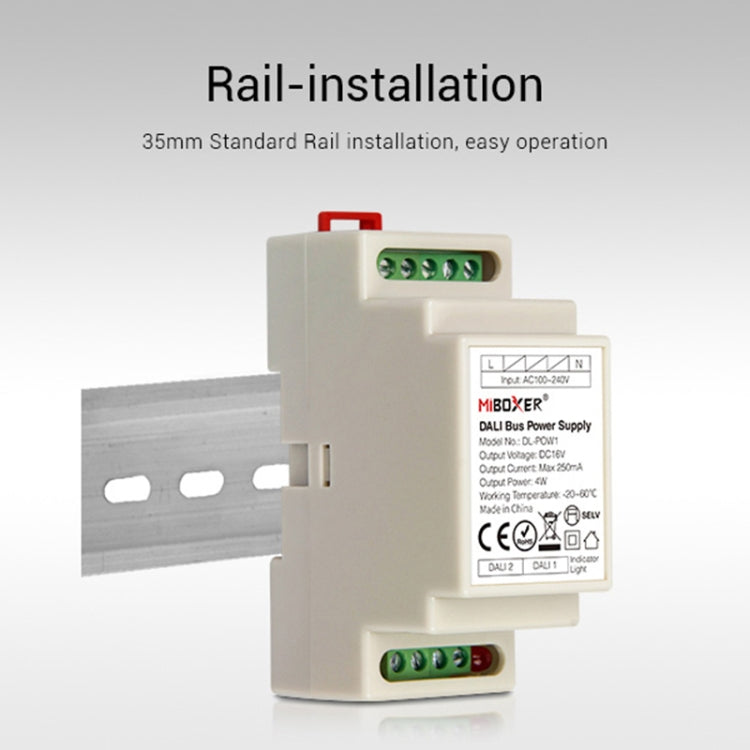

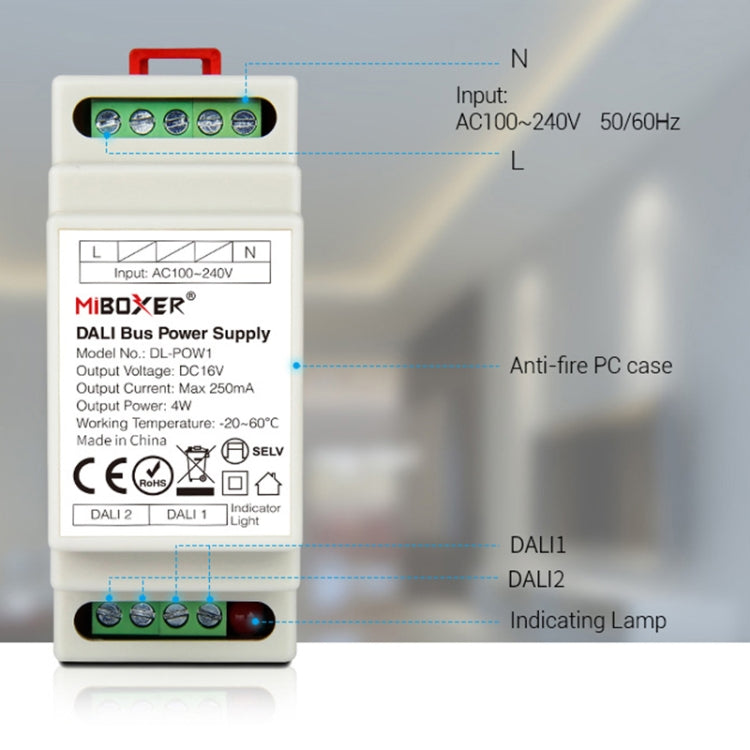

1. Product name: DALI bus power supply (DIN rail)
2. Model: DL-POW1
3. Input voltage: AC100~240V 50 / 60Hz
4. Input current: 115Vac /≤0.09A, 230Vac /≤0.05A
5. Leakage current: <0.5mA / 230Vac
6. Inrush current: 10A cold start at 230Vac
7. Set-up time: 115Vac <2500ms, 230Vac <1500ms (full load)
8. Output voltage: DC16V
9. Output current: maximum 250mA
10. Highest rated power: 4W
11. Ripple and noise: 0.2Vp-p (full load)
12. Working temperature: -20~60 degrees Celsius
13. Working humidity: 20~95%RH, no condensation
Specification:
Package Weight
One Package Weight 0.09kgs / 0.20lb
One Package Size 9.5cm * 6.3cm * 4.5cm / 3.74inch * 2.48inch * 1.77inch
Qty per Carton 326
Carton Weight 30.00kgs / 66.14lb
Carton Size 65cm * 43cm * 30cm / 25.59inch * 16.93inch * 11.81inch
Loading Container 20GP: 318 cartons * 326 pcs = 103668 pcs
40HQ: 738 cartons * 326 pcs = 240588 pcs
