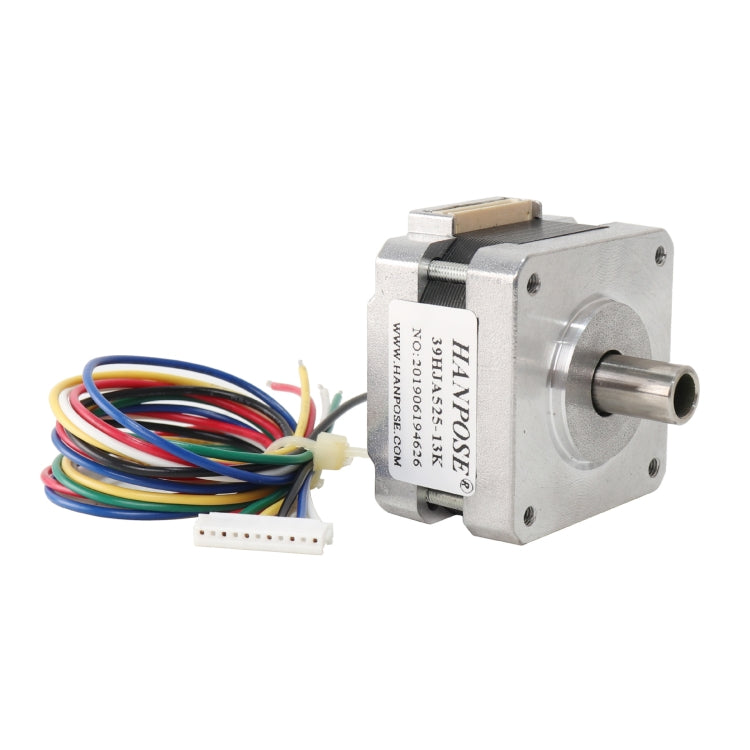

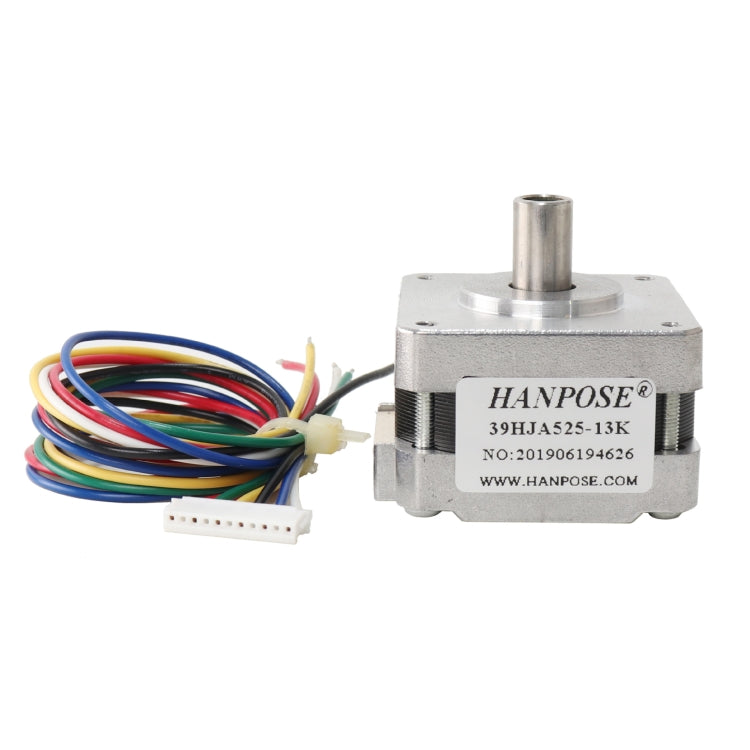

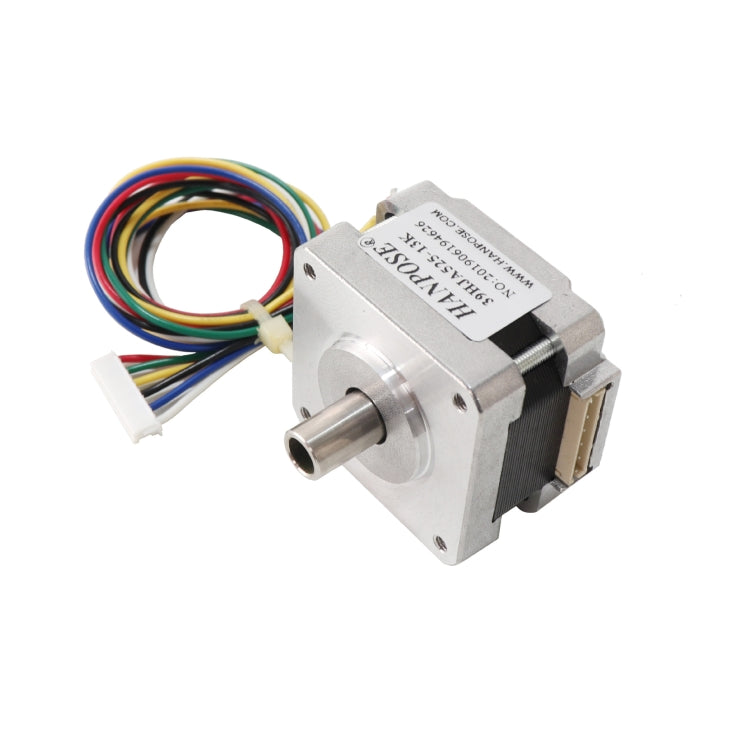

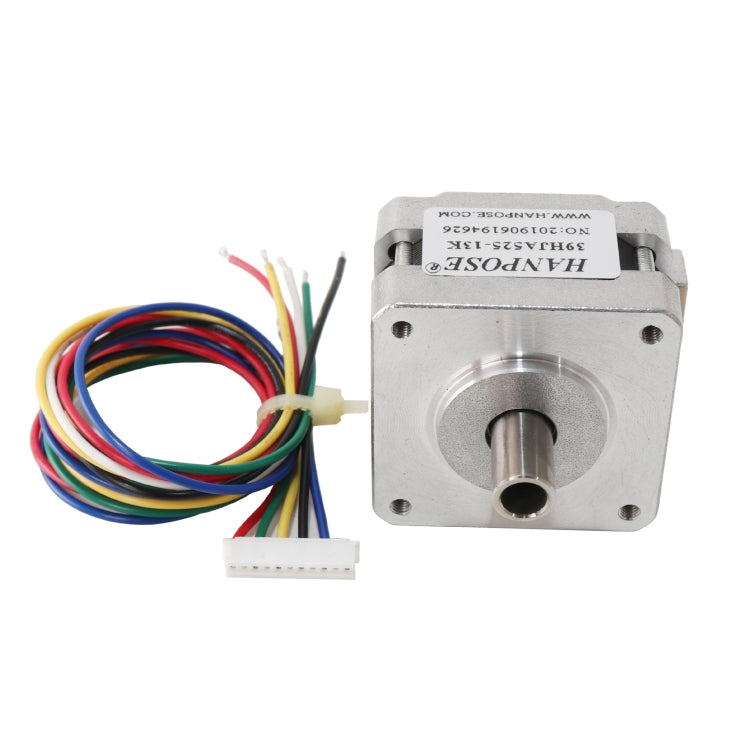

HANPOSE 39HGA525-13K 0.8A 0.2NM Induction Light Stepper Motor

HANPOSE

HANPOSE 39HGA525-13K 0.8A 0.2NM Induction Light Stepper Motor, 39HGA525-13K

Rs. 927.00

Shipping calculated at checkout.

Quantity
Option:

📦 Description


1. Step accuracy: +5% (full step, no load)
2. Step angle: 1.8 degrees
3. Temperature rise: 80 degrees Celsius Max
4. Ambient temperature: -20--+50 degrees Celsius
5. Insulation resistance: 100M Ω min. 500VDC
6. Withstand voltage: 500VAC for 1 minute
7. Radial clearance: 0.06 Max. (450g-load)
8. Axial clearance: 0.08 max. (450g-load)
9. Radial pressure MAX: 28N (20mm From the flange)
10. Axial pressure MAX: 10N


Specification:
Package Weight
One Package Weight 0.14kgs / 0.32lb
One Package Size 10cm * 8cm * 7cm / 3.94inch * 3.15inch * 2.76inch
Qty per Carton 60
Carton Weight 9.50kgs / 20.94lb
Carton Size 32cm * 34cm * 37cm / 12.6inch * 13.39inch * 14.57inch
Loading Container 20GP: 662 cartons * 60 pcs = 39720 pcs
40HQ: 1537 cartons * 60 pcs = 92220 pcs
